Image Slides And Caption Placement
image-slide fills a counted slide with an image and hides page chrome.
fit: "cover" fills the page; "contain" keeps the complete image. Source paths,
alt, and other image arguments retain native Typst behavior and resolve from
the calling document.

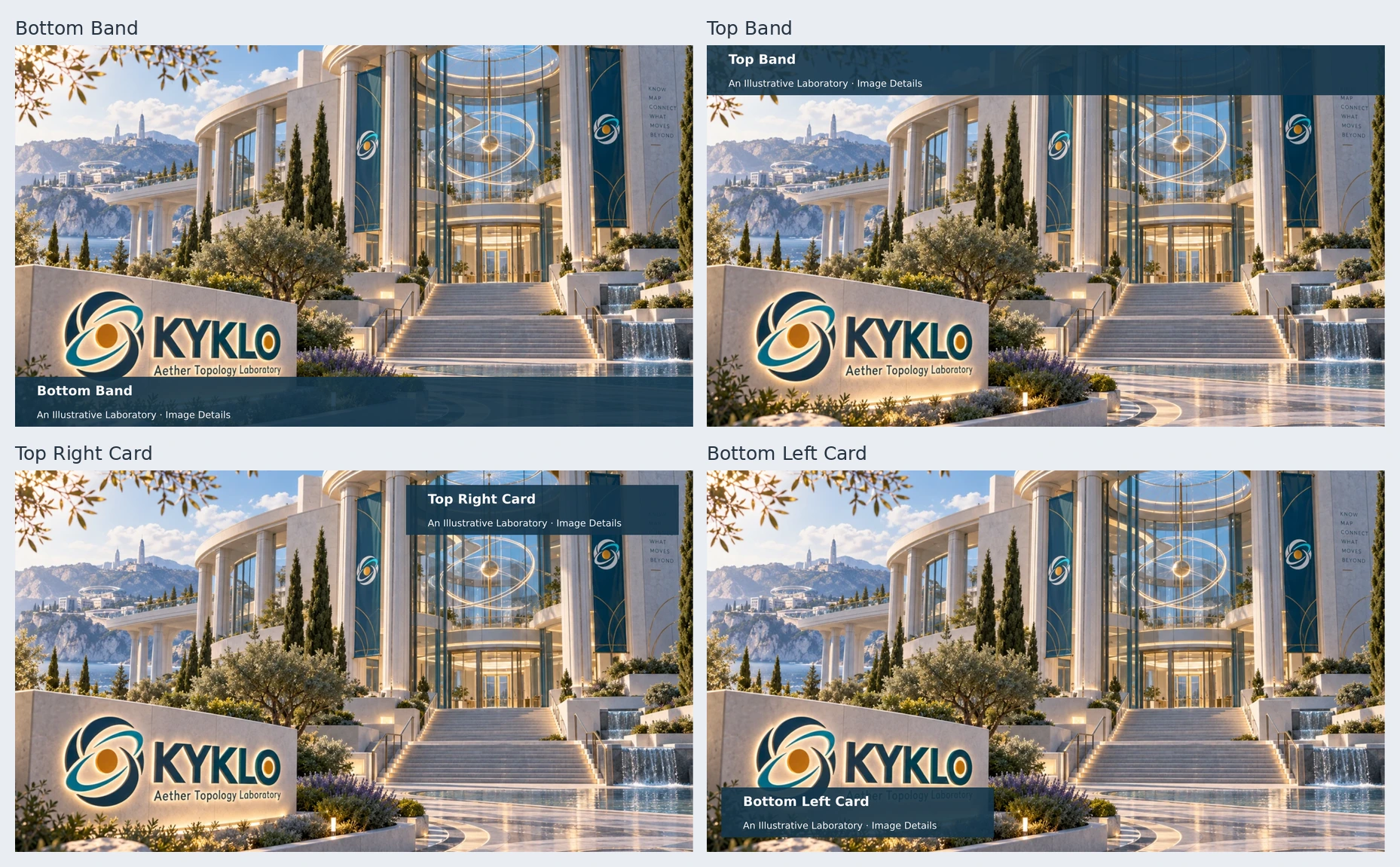

The same image with four caption placements. The editable comparison includes all four; click the image to enlarge it.
By default, the caption is a full-width band at the bottom:
#image-slide("photos/lab.jpg",
caption: [A Place To Explore], credit: [Photo: institution],
alt: "A view of the laboratory",
)
Use native alignment values for placement. A narrower width and outer margin turn the band into an inset card:
#image-slide("photos/lab.jpg",
caption: [A Place To Explore],
credit: [Photo: #link("https://example.org")[Source]],
caption-position: top + right,
caption-width: 42%,
caption-margin: 1em,
alt: "A view of the laboratory",
)
| Option | Default | Meaning |
|---|---|---|
caption-position | bottom | Native alignment: top, bottom + right, or even center + horizon. An omitted horizontal axis uses left; an omitted vertical axis uses bottom. |
caption-width | 100% | Percentage of the region after margins, an absolute/em length, or a relative length such as 50% - 1em. |
caption-margin | 0em | Outer inset. Accepts native lengths/percentages or dictionaries, e.g. (left: 2em, right: 1em, y: 1em). |
caption-fill | auto | Translucent palette chrome. A color/gradient replaces it; none removes the panel. |
caption-text-fill | auto | Palette text for the default panel; readable text for an explicit solid fill. Explicit colors override it. Links follow the same fill. |
For a top band use caption-position: top. For either corner, set its native
alignment and choose a narrower width. Text inside the panel remains left
aligned; placement controls the panel’s location rather than paragraph alignment.
Caption-only and credit-only panels work; omitting both draws only the image.
A white card automatically chooses dark text. With caption-fill: none or a
custom gradient, set caption-text-fill to suit the photograph. Automatic
contrast does not analyze image pixels; review text over the actual image.
Margins, panel padding, caption size (0.9em), and credit size (0.65em)
follow the presentation text size. The panel is measured and must fit inside
the inset image region. An excessive width or height produces a diagnostic
instead of silently clipping the caption or adding another slide.
Reuse a local preset with ordinary function composition:
#let image-card = image-slide.with(
caption-position: bottom + right, caption-width: 42%, caption-margin: 1em,
)
#image-card("photos/lab.jpg", caption: [Our Laboratory])
See the editable comparison. Its defaults can be changed directly in an IDE; no command-line flags or export script are required.
